TrustFire MlNlX3-SE is a compact and portable all-metal EDC multifunctional flashlight with three modes: spotlight, ultraviolet and laser. It can be switched freely to adapt to various scenarios.
1200 lumens white light
USB-C charging
Class 3R red laser
Magnetic taillight
IPX6 waterproof rating
BRIGHT WHITE LIGHT ILLUMINATES YOUR WAY FORWARD
White light mode, brightness up to 130 meters, maximum range up to 1200 lumens
MAXIMUM 1200 LM
MAXIMUM 130 M
RED LASER PRECISE POSITIONING
The laser emits a straight red line, which can be used for teaching, PPT presentations, long-distance photography of the starry sky, and entertaining cats and dogs.
UV LIGHT (ULTRAVIOLET LIGHT)
Can be used for coin detection, stain detection, fluorescent agent detection and moth detection.
REASONABLE DESIGN, SIMPLE AND EASY TO OPERATE
Round button: power on/off/gear adjustment

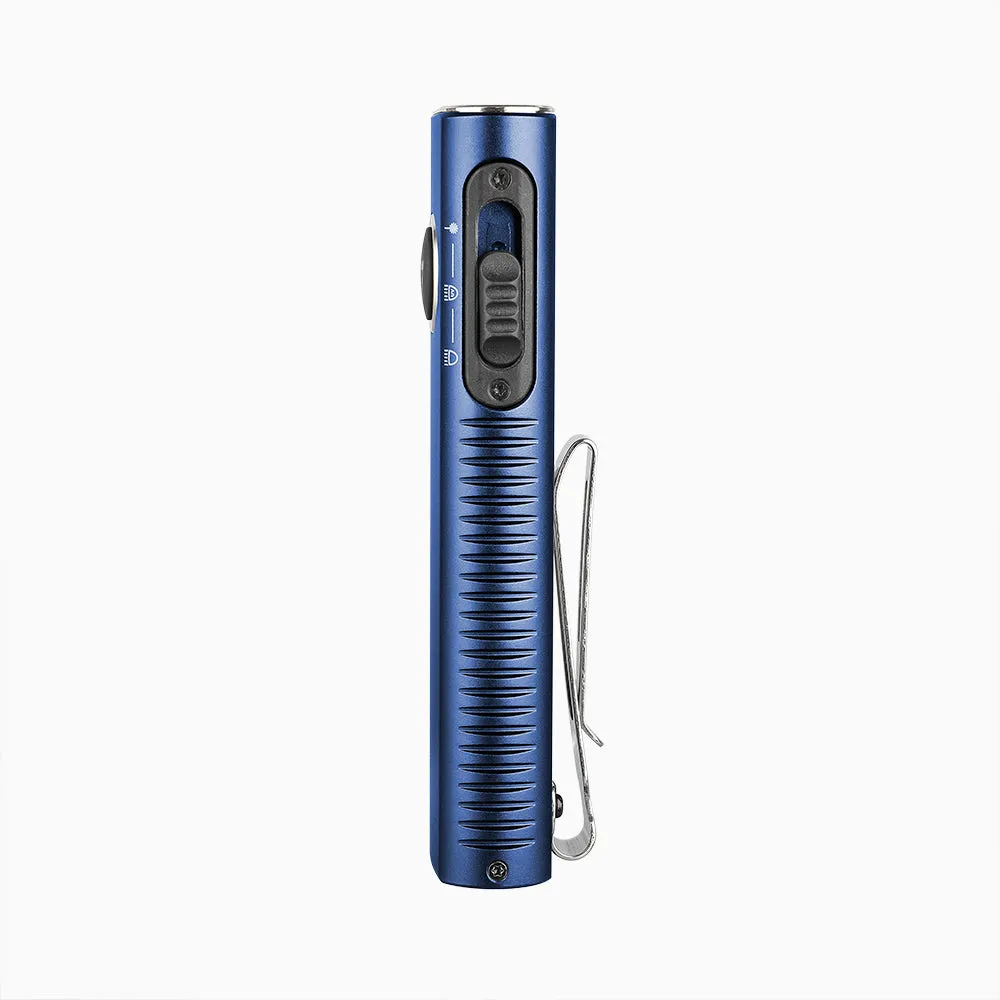

Side switch button: mode switch
A:On/off button
B:Red Laser
C:UV light
D:White light
E:Round button: power on/off.brightness adjustment.
F:Side dial button: can betoggled up and down toswitch between laser mode,UV mode and white light.
BUTTON OPERATION
The MINlX3-SE button operation process is as follows:
Mode 1: Main light (white light) mode. Turn the side switch to the lowest position, press and hold the front button for 0.5 seconds to turn on the white light, press again to cycle through the modes: low-medium-high extremely bright, press and hold the button for 0.5 seconds to turn off the white light.
Mode 2: Ultraviolet mode. Turn the side switch to the middle position, press and hold the front button for 0.5 seconds to enter the ultraviolet mode, and then press and hold the button for 0.5 seconds to turn off the ultraviolet.
Mode 3: Laser mode. Turn the side switch to the top position, press and hold the front button for 0.5 seconds to turn on/off the laser.
Lock: In the off state, double-click the button to lock the flashlight, and the low light mode will flash twice to confirm the lock.
Unlock: In the locked state, quickly double-click the button to unlock and enter the daily mode.
Mistaken touch: In the locked state, the flashlight only responds to the double-click unlock operation. Single-click or long-press the switch, and the flashlight flashes twice at a low speed and then goes out.
In memory mode, the flashlight will automatically memorize the last setting at any brightness of white light, and will return to memory mode after turning it off and then on again.
MAGNETIC SUCTION ON THE BOTTOM FREES HANDS
The bottom has a magnetic adsorption function, which can be adsorbed on iron objects. It has strong adsorption force and fast speed, freeing your hands
TYPE-C CHARGING
Type-C interface design, strong versatility, suitable for most mobile phones and electronic product data cables, fast charging, convenient and fast
RED LIGHT:CHARGING
GREEN LIGHT:FULLY CHARGED
BARERT HBLATBR

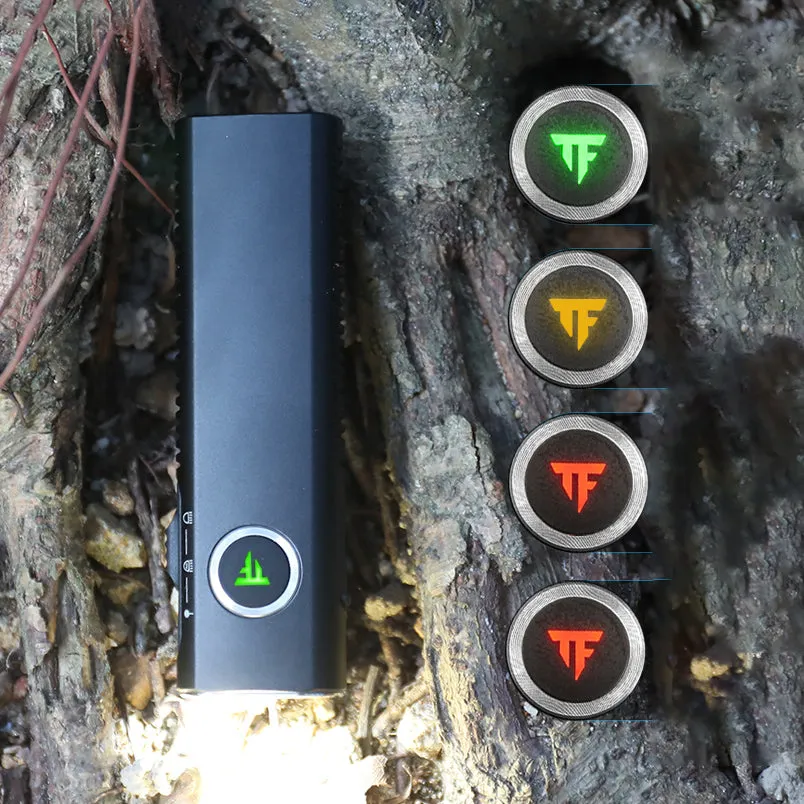

The device will automatically shut down when it is turned off. Different colors represent different remaining power. The corresponding relationship is shown in the figure on the right:
GREEN:[80%~100%]
YELLOW:[20%~80%]
RED:[5%~20%]
FLASHING RED:[0%~5%]

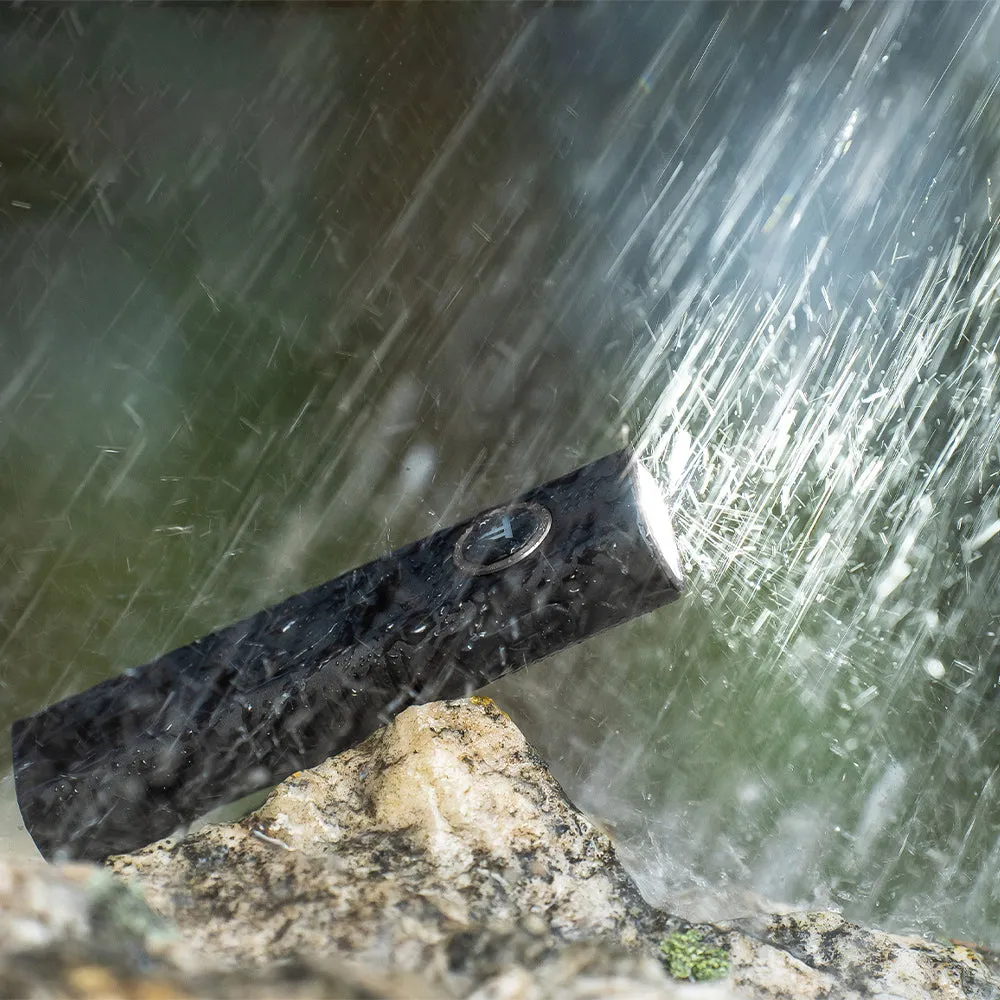

IPX6 WATERPROOF
MINlX3-SE can operate normally in rainy days

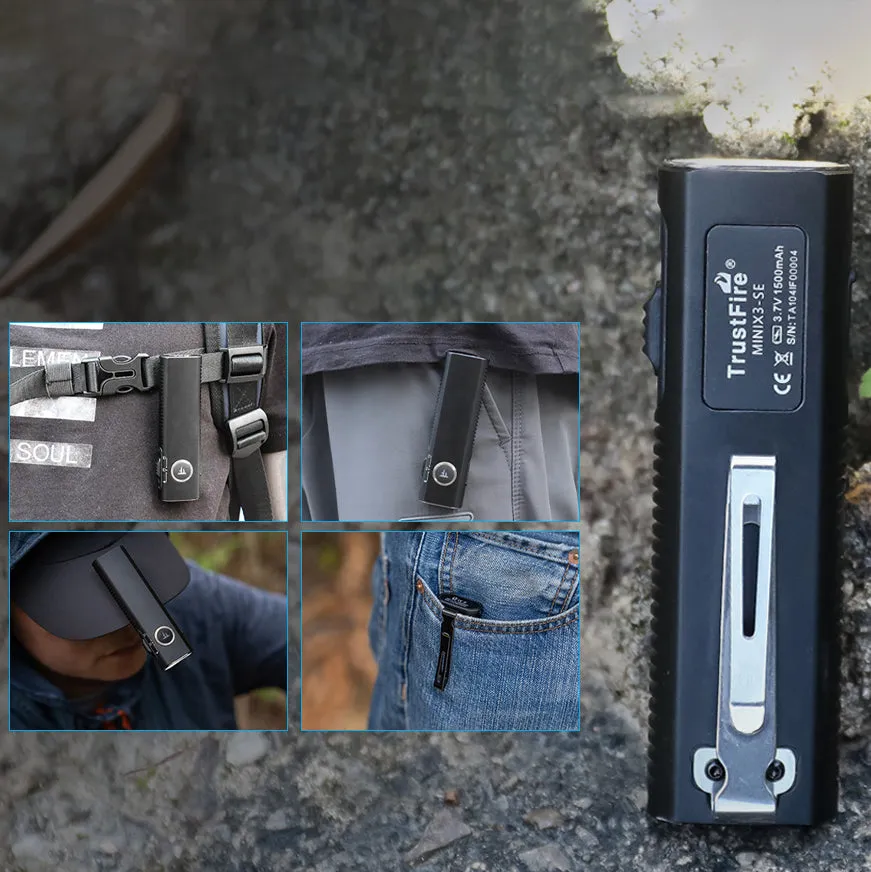

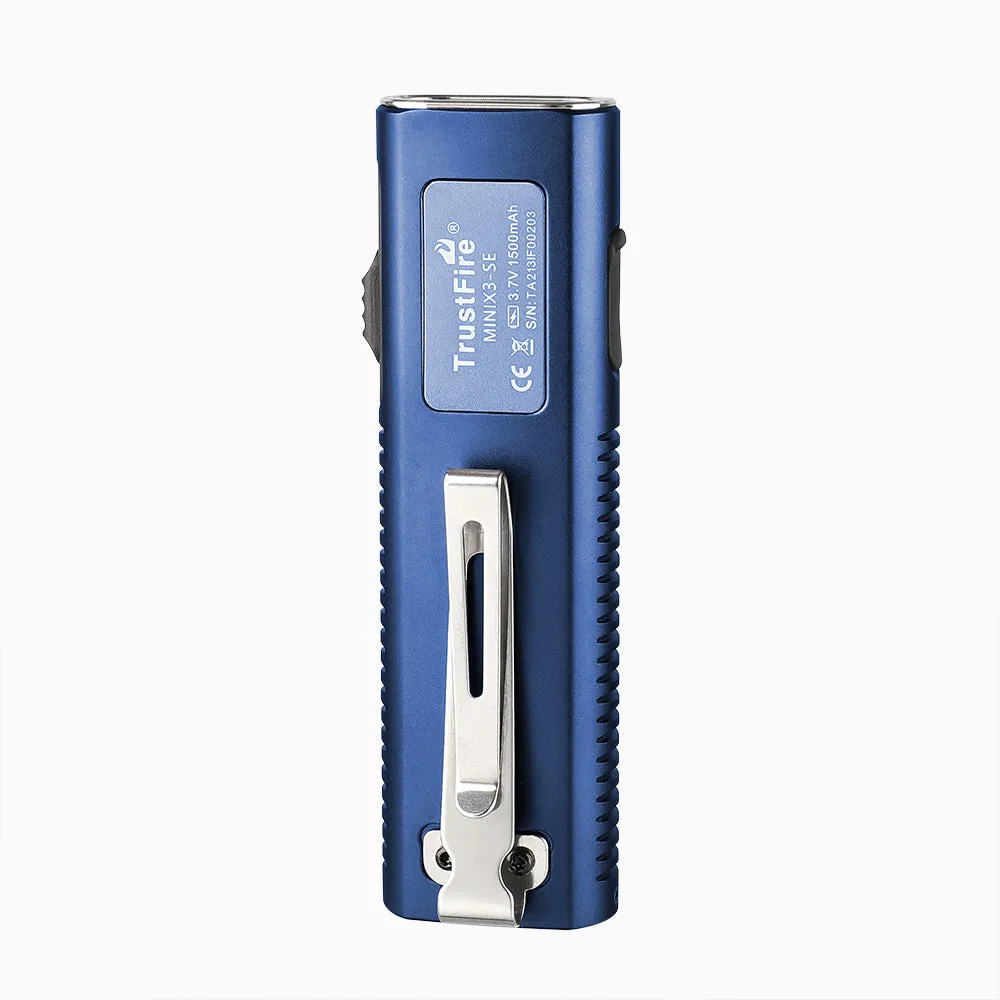

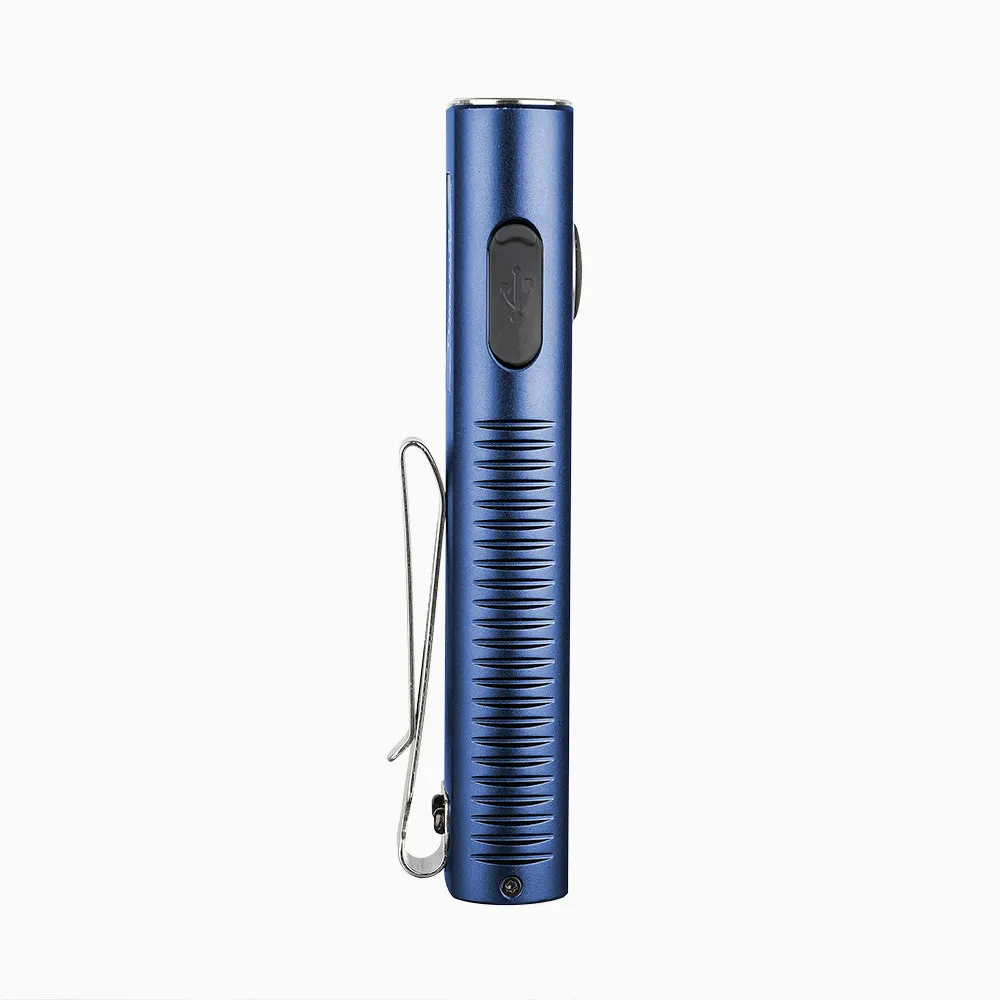

WIDENED STAINLESS STEEL HOLDING CLIP
Wider and stronger, it clips easily to a hat brim, pocket or backpack
PRODUCT PARAMETERS
| WHITE LIGHT (SPOT LIGHT) LIGHTING | UV LIGHT | RED LIGHT | ||||
| ANSI/FSC | LOW MODE | MIDDLE MODE | HIGH MODE | EXTREMELY MODE | / | / |
| BRIGHTNESS | 3.5LM | 55LM | 220LM | 1200LM | / | / |
| RUN TIME | 152 HOURS | 15 HOURS | 4.1 HOURS | 2.2 HOURS | 50 HOURS | 25 HOURS |
| RANGE | 5M | 20M | 65M | 128M | / | / |
| LGHT INTENSITY | 6.25CD | 100CD | 1056CD | 4096CD | / | / |
DROP HEIGHT:1M
WATERPROOF:IPX6
ADOITONAL FEATURES:INTELLIGENT TEMPERATURE CONTROL, LOW VOLTAGE WARNING, BATTERY INDICATOR, TYPE-C CHARGING
Note: The above parameters are only approximate values and are obtained by testing in a laboratory environment. The values may change with changes in the usage environment and battery.
PRODUCT FEATURES
★Adopt the latest generation of LED with international patents, with a lifespan of 50,000 hours, ★Freely switch between main light, ultraviolet light and laser modes,
★Brightness up to 1200LM, range up to 130 meters; *Built-in 1500mAh polymer lithium battery, Type-C direct charging;
★With memory mode function;
★Alloy metal body, excellent heat dissipation performance,
★The shell is made of aviation aluminum alloy CNC fine processing, and the surface is hard anodized,
★Net weight: 90.6g (including battery) Size: 102 (length) * 33 (width) * 24 (height) mm;
★Laser product hazard level classification: Class lA/Class3A 1-5mw
